Product introduction
Application

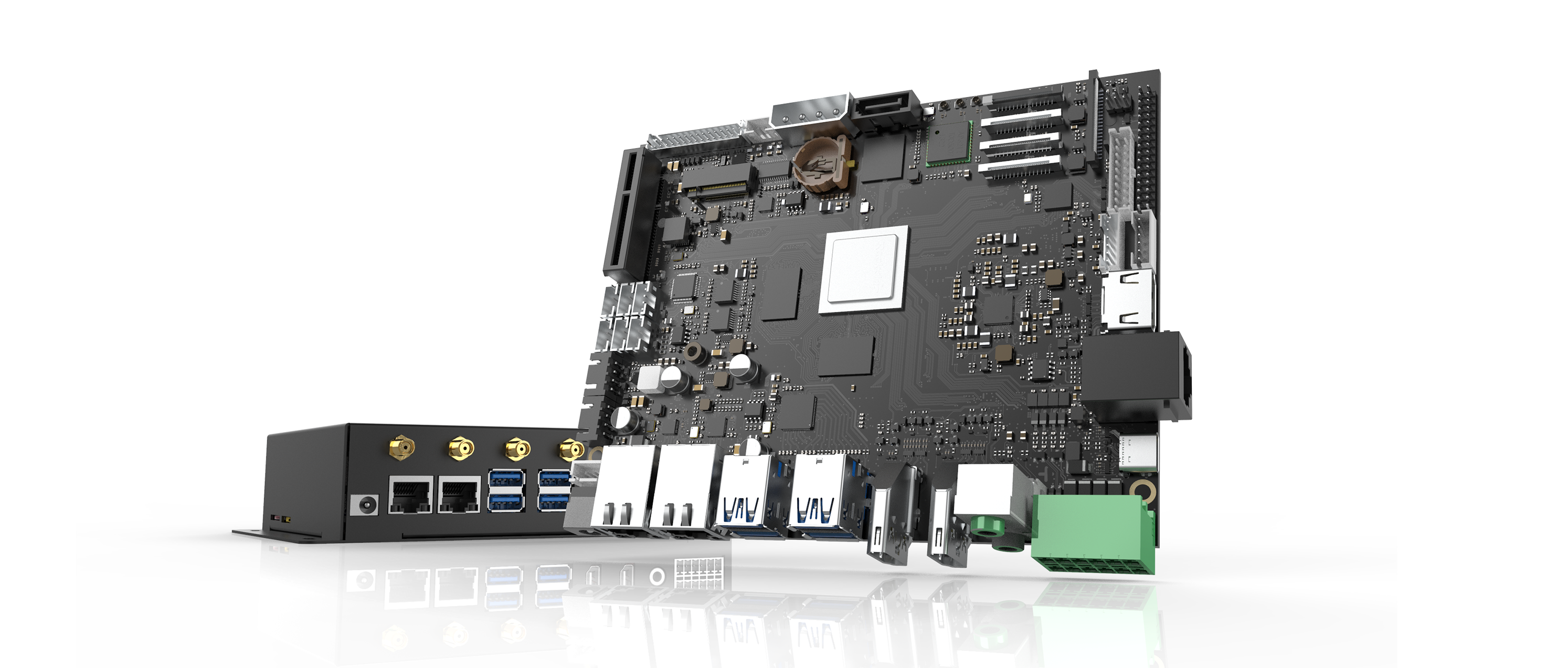

SD5400 is an Android Smart Mainboard with rich control interfaces and external interfaces. It has a wide range of application scenarios in intelligent display terminals, video terminals and industrial automation terminals, such as high-end business display, intelligent self-service terminals, intelligent retail terminals, edge computing, industrial control hosts, robot devices, etc.
Overview
SD5400 adopts Rockchip RK3588 processor, which excellent processing and AI computing capability. It provides users with high-quality AI audio and video processing services in real time. The ultra-high-speed wired and wireless communication of the board greatly improves the data throughput of the system. At the same time, the board has rich HD display interfaces, which brings extraordinary visual experience to customers.
Features
SD5400 is very suitable for AI edge computing scenarios with its powerful processing ability.
Powerful processing capacity
Rockchip RK3588 processor, using the design of large and small cores, 4-core Cortex-A76 2.4GHz; 4-core Cortex-A55 1.8GHz, bringing powerful computing and processing capabilities
Efficient AI computing performance
AI computing capability of up to 6TOPS

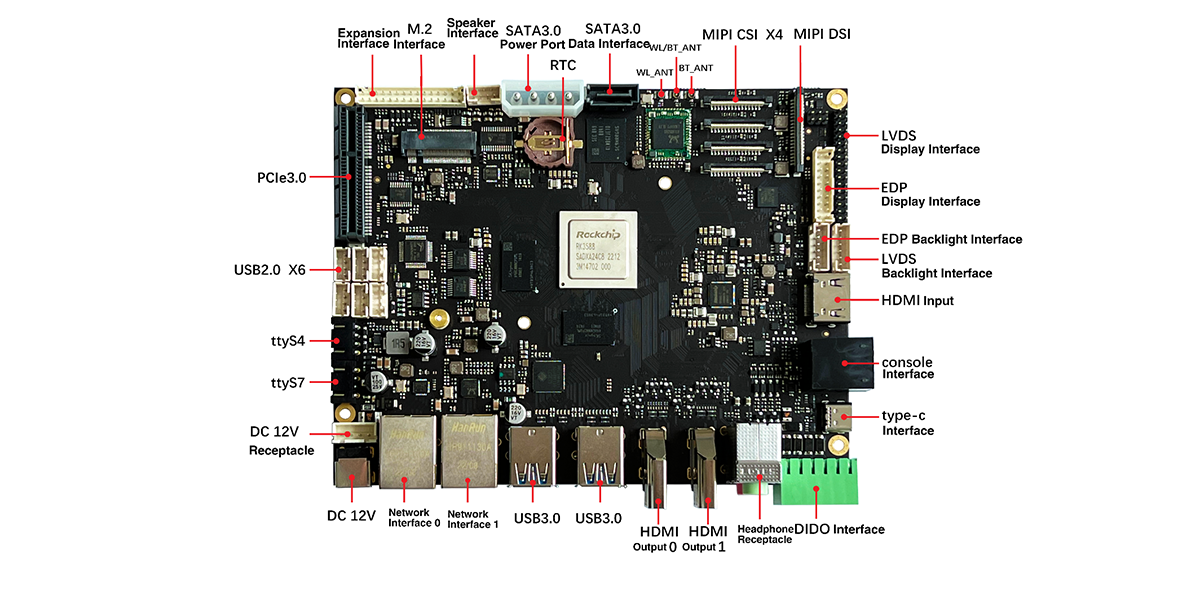

Rich peripheral interfaces
USB3.0 Super Speed communication, HDMI 4K Ultra HD display, RS232&RS485 industrial communication, RJ45 Gigabit Ethernet communication, etc.
Excellent wireless communication
5G wireless module can be connected externally and support wifi-6 wireless link
Dimension drawing
Product parameters
Hardware Specifications | ||
Platform | CPU | RK3588 4 Core Cortex-A76 2.4GHz 4 Core Cortex-A55 1.8GHz |
Storage(LPDDR4) | 4GB standard, up to 32GB optional | |
Storage (EMMC) | Standard 64GB | |
Operation System | Android 12.0 | |
Network | Mobile Network | 1 M.2 Connector 4G/5G module can be connected externally |
WIFI,BT | 2.4G 5G WIFI 802.11a/b/g/n/ac/ax 2T2R Bluetooth 5.2 | |
Ethernet | 2 10M/100M/1000M Adaptive Ethernet | |
Communication Interfaces | USB | Default: 6 USB2.0 Pin Interface 4USB3.0 A Interface 1 Type-C Debug Interface |
RS232 | 1 RS232 interface | |
RS485 | 1 RS485 interface | |
PCIE3.0 | 1 PCIe3.0 x 4 Slot interface | |
1 SATA3.0 Hard Disk Data Transfer Interface | ||
CAN | 1 CAN Interface | |
DIDO | 4 DIDO Interface | |
Video Output Interface | HDMI TX | 2 HDMI2.1（8K@60fps，4K@120fps）Output One can be configured as 4K@60fps EDP Output |
LVDS | 1 1080p Output | |
MIPI DSI | 2 MIPI DSI（4K@60fps）Output | |
Video Input Interface | HDMI RX | 1 HDMI2.0（4k@60fps）Input, Support HDCP 2.3 |
MIPI CSI | 4 4 Lane MIPI CSI Input | |
Audio Interface | Output | 1 3-segment headphone output interface |
Input | 1 3-segment headphone input interface | |
Speaker | 2 5W/8R speaker interfaces | |
Card Holder | SIM Card | 1.8V/3.0V, Push-Push Micro-SIM card holder |
SD Card | Push-Push Micro-SD card holder | |
Encode/Decode | Encode | 8K@30fps H.264/H.265 Up to 16 1080p@30fps encode |
Decode | 1080p@60fps MPEG-2/-1/VC-1/VP8 4K@60fps AV1 8K@30fps H.264/AVC/MVC 8K@60fps H.265/VP9/AVS2 Up to 32 1080p@30fps decode | |
Other Interfaces | Power Source | 1 12V DC Input |
Hard Dish Power Output Port | 1 12VDC/5VDC Input | |
Antenna | 3 WIFI/BT IPEX connector | |
Extension | 1 3.3V interface 1 12V interface 2 5.0V interface 1 Volume up interface 1 Volume down interface 1 Power on/off interface 1 Menu 1 ESC 1 Reset 1 BOOT 1 CAN Communication Interface 2 RS232 Communication Interface 2 SARADC_IN Interface 2 USB Data Transfer Interface | |
