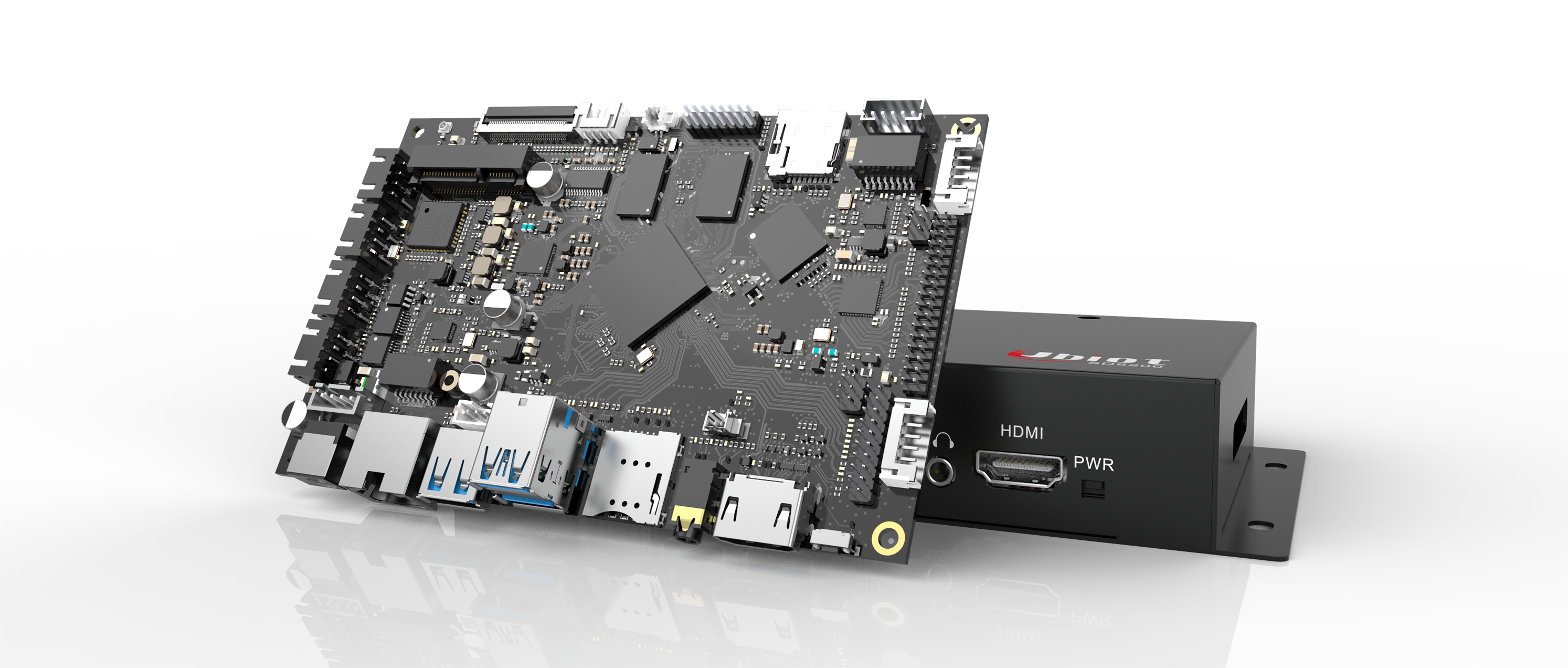

SD5200 is an Android Smart Mainboard with rich control and external interfaces. It has a wide range of application scenarios in display terminals, video terminals and industrial automation terminals, such as intelligent self-service terminals, intelligent retail terminals, etc

Overview

SD5200 adopts Rockchip RK3568 processor, is equipped with Android operating system, and has rich Android Market Applications. The integrated 3G/4G function supports real-time communication of 3G/4G all Netcom;

It also has rich peripheral interfaces, supports USB master-slave communication, 100M Ethernet wired communication, LVDS HDMI dual screen different display and dual screen same display, and can be externally connected with RS232, RS485/RS422 standard communication peripherals.

SD5200 greatly simplifies the whole system design, brings simple and smooth operation experience to users, and can meet the personalized needs of customers.

Features

SD5200 adopts industrial hardware design and is equipped with android11 system. It has rich interfaces and excellent processing performance. It can be easily integrated into self-service commercial display and other systems to expand access to a variety of peripherals.

Powerful computing capacity: The RK3568 has a 4-core Cortex-A55 processor. It adopts a new ARV V8.2-A architecture. The dominant frequency can reach up to 2.0GHz, bringing powerful computing and processing capabilities. Meanwhile, RK3568 adopts 22nm advanced technology to further reduce system power consumption and improve performance.

Flexible display configuration: 1 channel of LVDS, 1 channel of eDP and 1 channel of HDMI display interface, and supports the dual screen differential display and dual screen simultaneous display functions of resolutions of LVDS and HDMI.

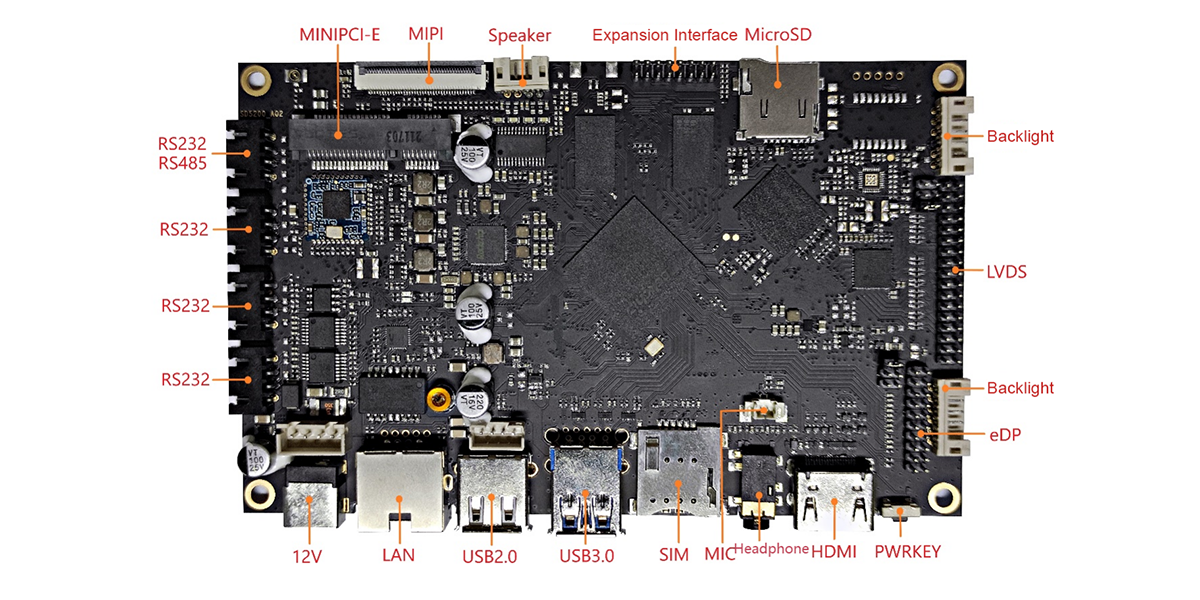

Rich peripheral interfaces: Mainboard owned USB, RS232, RS485, RJ45, headset, HDMI, LVDS and other interfaces to support the equipment manufacturer to access a variety of peripherals to the greatest extent. It has one USB3.0 ultra-high speed communication interface, which can meet the current application of various face payment scenarios.

Simplified management: Mainboard runs Android operating system, enjoys open Android development resources and rich Android application software, very convenient for users to manage files and software, and Human-Computer interaction is very simple.


Dimension drawing


Product parameters

Hardware Specification

Platform

CPU

4-core A55  2.0GHz

RAM

Default configuration 2GB DDR4Optional 1GB   DDR4

Flash

8GB eMMC

Operation system

Android 11

Network

Mobile network

2G/3G/4G

WIFI / BT

2.4G 802.11 b/g/n    Bluetooth 2.1

Ethernet

One   channel 10m/100m adaptive Ethernet (two channels can be configured at most)

Communication   Interfaces

USB

Default

1 USB3.0 OTG interface

1 USB2.0 HOST A interface

1 USB2.0 HOST pin connector interface

RS232

3 RS232interface

RS485

1RS485 interface (Optional RS232 interface)

Display Interfaces

LVDS

Dual Channel LVDS, default 1080p resolution

HDMI

1 HDMI interface, default 1080p resolution

eDP

1 eDP interface, default 1080p resolution

Audio

Interfaces

Headphone

1 3.5mm headphone connector

Speaker

2 8R/5W speaker driver interfaces

MIC

1 analog MIC input interface

Standard

Card Holders

SIM Card

1.8V/3/3VPush-Push   Micro-SIM Card holder

SD Card

Push-Push Micro-SD card holder

Encode

Decode

Video Encode/Decode

H.265/H.264/VP9/VP8/VC1/MPEG-4/MPEG-2/MPEG-1/H.263   video decode  H.265/H.264 video encode


BMP/JPEG/PNG/GIF

Other Interfaces

Power Source

12V DC

Camera

1 MIPI camera interface

Button

Power on/off (Default power-on auto start)

Antenna

WIFI/BT IPEX interface

Indicator

1 Red LED indicator for power

1 Blue LED indicator for network

Coin battery

1 RTC coin battery connector

Extension interface

4 3.3V GPIO

1 channel volume plus signal

1 channel volume reduction signal

1-way switch button signal

1 channel ADC input signal
